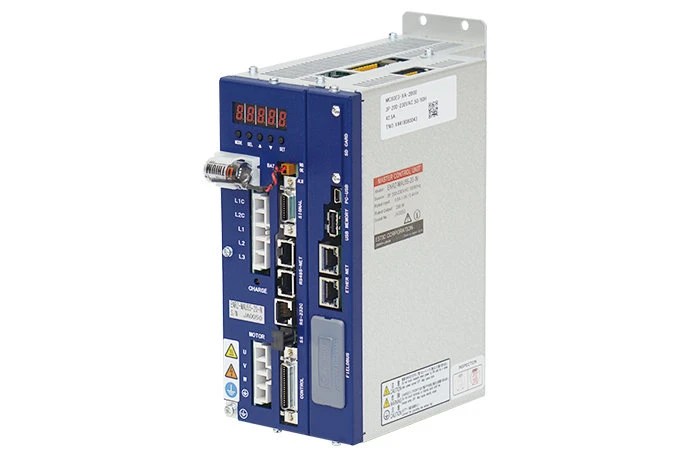

Imagen oficial de la serie ESTIC; la configuración exacta se consulta en la hoja del modelo.
ENRZ-MAU55-40-*
Datos principales
- Tipo
- Controladores de ensamblaje
- Alimentación principal
- Three Phase 200-230V AC 50/60Hz
- Alimentación de control
- Single Phase 200-230V AC 50/60Hz
- Pantalla y manejo
- 5 Characters x 1 Digit 7-segment LED Display Function Keys (5) Indicator Lamp (NG/OK/ALM)
- Control Input (PIN)
- Photocoupler Isolation 16 Points (24V DC, Draw-in Current 6mA/Point) Both sink (- common) and source (+ common) connections can be made
- Control Output (POUT)
- Photo MOS Output 16 Points (24V DC, Max. 50mA/Point) Both sink (- common) and source (+ common) connections can be made
- Maximum Number of Programs
- 99 Programs
- Maximum Number of JOBs
- 99 Job (can be set up to 50 step/JOB)
Solicitar cotización por correo
Precio y disponibilidad a consultar.
Características de ENRZ-MAU55-40-*
- Tipo
- Controladores de ensamblaje
- Alimentación principal
- Three Phase 200-230V AC 50/60Hz
- Alimentación de control
- Single Phase 200-230V AC 50/60Hz
- Pantalla y manejo
- 5 Characters x 1 Digit 7-segment LED Display Function Keys (5) Indicator Lamp (NG/OK/ALM)
- Control Input (PIN)
- Photocoupler Isolation 16 Points (24V DC, Draw-in Current 6mA/Point) Both sink (- common) and source (+ common) connections can be made
- Control Output (POUT)
- Photo MOS Output 16 Points (24V DC, Max. 50mA/Point) Both sink (- common) and source (+ common) connections can be made
- Maximum Number of Programs
- 99 Programs
- Maximum Number of JOBs
- 99 Job (can be set up to 50 step/JOB)
- SS Function
- Safe Stop Function (Motor power source is cut off without disconnecting power supply or motor cable.)
- External Communication Port
- RS-232C: 1 Port (Switchable from 9600bps to 115.2kbps) NET (RS-485): 2 Ports Ethernet Connection Port 10/100 BASE-T (RJ45): 2 Ports PC-USB (Mini-B)
- Fieldbus (Option)
- DeviceNet, PROFIBUS, CC-Link, EtherNet/IP, PROFINET, EtherCAT, CC-Link IE
- Memory Function
- FROM: Tightening Program, System Parameters, I/O Assignment, Tightening Result Assignment Items, etc. Memory Card: FROM Backups and Historical Data USB Memory: For Data Import/Export Battery: Calendar Function
- Tightening Result History
- Maximum 20,000 (Varies Depending on Settings)
- Torque Curve History
- Maximum 50 (Varies Depending on Settings)
- System Error History
- Maximum 200
- Other
- Free Assignment Function (Control I/O Signal, Tightening Result Data Item), Identifier Function, Sequence Function
- Control Power Capacity
- 50 VA
- Main Power Capacity (During Rated Operation)
- 0.7 kVA
- Inrush Current Value When Control Power is Turned on
- Approx. 26 Ao-p (Convergence Time: 5ms)
- Inrush Current Value When Main Power is Turned on
- Approx. 6 Ao-p (Convergence Time: 400ms)
- Dimensiones (mm)
- W109.8 × H222 × D170.4
- Peso (kg)
- Approx. 3.2
- Configuración
- Familia configurable: el asterisco requiere especificar la variante al cotizar.
Documentación
Datos pendientes de confirmar no se presentan como especificaciones verificadas. Especificaciones de documentación oficial ESTIC. Configuración y suministro a confirmar.
